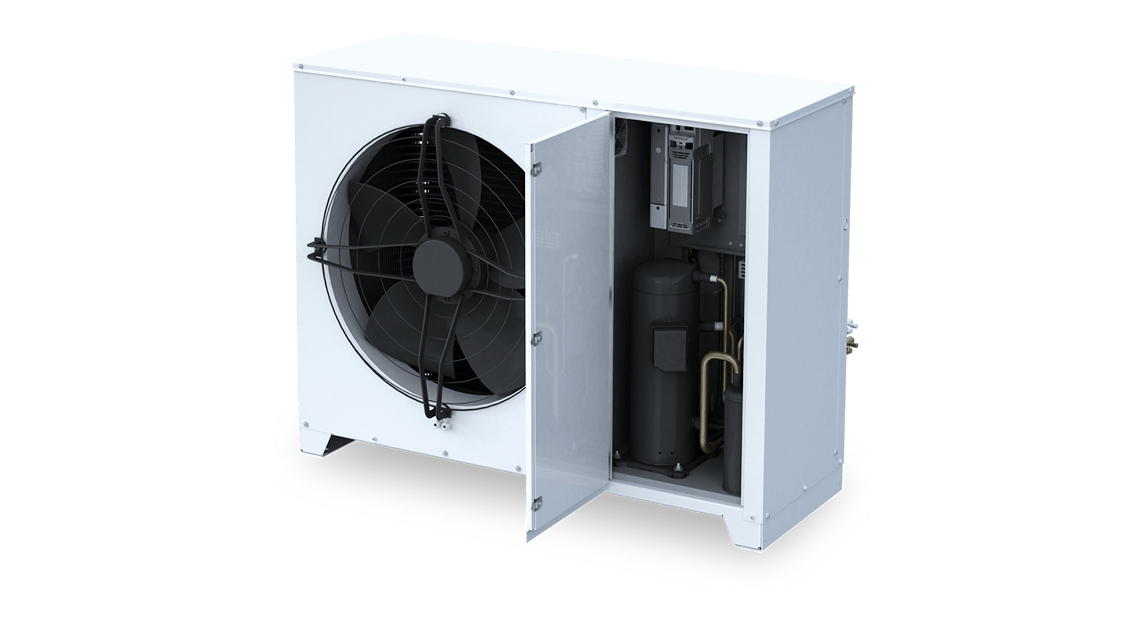

Agregat MCP 15

Temperature range: -25°C +45°

Refrigerating unit:

Refrigerant/Cooling factor: R449A, R448A, R407A, R407H, R407F, R507A, R404A

Atsisiųsti PDF
SpecificationsAgregat inwerterowy MultiCool+
CODEMCP 15
Length [mm]1510
Depth [mm]615
Height [mm]1165
Cooling capacity [kW]17
Liquid pipe connection [mm]16
Gas pipeline connection [mm]22
Type of compressorInwerterowa
RPM speed1000-7200
Oil separatorTak
Type of oilEmkarate RL 32 3MAF
Medium tank [l]15
Pressure PS29
Safety valve [ bar ]29
RefrigerantR449A, R448A, R407A, R407H, R407F, R507A, R404A
Power400V/3/50Hz

Standard Equipment

compressor with adjustable performance adapted for the inverter operation
EC fan
DC inverter
programmable controller
graphical service panel
fluid tank
safety valve
oil separator
filter
liquid separator
ball valves with service spigots
additional fan for the electrical compartment and compressor
heater for the electrical and compressor compartment
heater for the compressor crankcase
electrical safety
electrical panel
set of pressure switches and pressure relays
fluid sight glass visible from the outside
liquid fluid separator at the vacuum
compressor transport lock
standard finned coil condenser

Options

aesthetic construction / rigid metal powder coated aluzinc monobody
the highest quality components
mounting feet
low noise level
compressor with variable capacity
super quiet EC fan with variable capacity
stepless capacity control unit
simple wiring
low vibration device
works with agents R449A, R448A, R407A, R407H, R407F, R507A, R404A
working range from -25 ° C to + 45 ° C external temperature
compatible with BMS
very high performance characteristics
low energy consumption
modern, attractive design
corrosion-resistant housing
suitable for upright assembly and hanging
can be connected to existing monitoring network
possible to construct your own monitoring network
