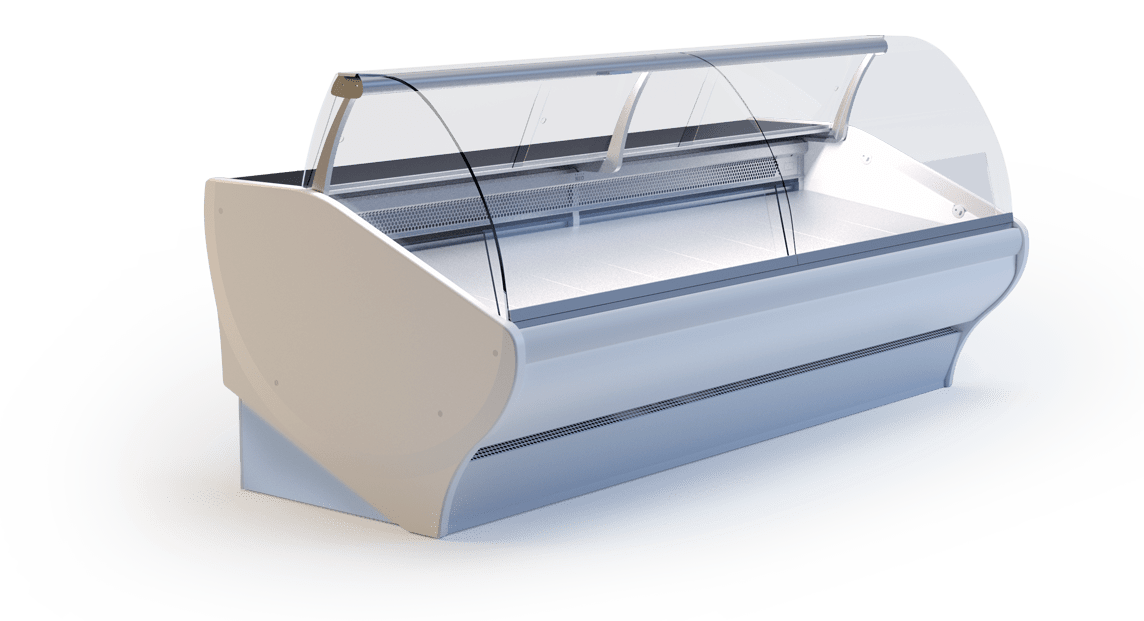

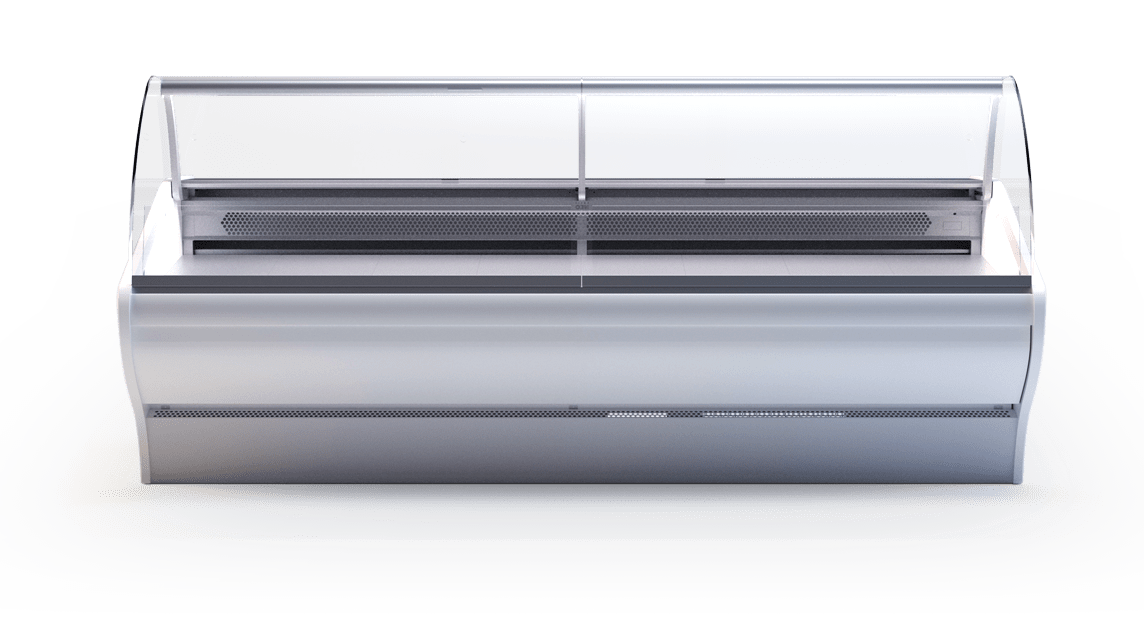

Basia Neo

Temperature range: +1ºC/+10ºC

Refrigerating unit: Internal

Refrigerant/Cooling factor: R290  / R449

Download PDF

Specification

ModelBASIA NEO 0.94BASIA NEO 1.25BASIA NEO 1.56BASIA NEO 1.88BASIA NEO 2.50BASIA NEO 3.13BASIA NEO 3.75BASIA NEO NW90BASIA NEO NZ90
CodeBN120BN130BN140BN150BN160BN170BN180BN190BN195W
Length [mm]938125015631875250031253750
Height [mm]1220±101220±101220±101220±101220±101220±101220±101220±101220±10
Depth [mm]115511551155115511551155115511551155
Capacity [dm3]115155193233310388465
Display area [m²]0,91,21,21,82,43,03,6
Total Display Area (TDA) [m²]
Temp. range [°C](+1 ± +10°C)(+1 ± +10°C)(+1 ± +10°C)(+1 ± +10°C)(+1 ± +10°C)(+1 ± +10°C)(+1 ± +10°C)(+1 ± +10°C)(+1 ± +10°C)
Temp. class3H13H13H13H13H13H13H13H13H1
Climate class3 ( 25°C ; 60% RH )3 ( 25°C ; 60% RH )3 ( 25°C ; 60% RH )3 ( 25°C ; 60% RH )3 ( 25°C ; 60% RH )3 ( 25°C ; 60% RH )3 ( 25°C ; 60% RH )3 ( 25°C ; 60% RH )3 ( 25°C ; 60% RH )
Energy efficiency class
RefrigerantR290R290R290R290R290R449R449R290R290
Rated voltage [V]230/50Hz230/50Hz230/50Hz230/50Hz230/50Hz230/50Hz230/50Hz230/50Hz230/50Hz
Rated power [W]35438238946753311791194382
Electricity consumption [kWh/24h]5,05,35,46,57,516,516,75,3

Standard version

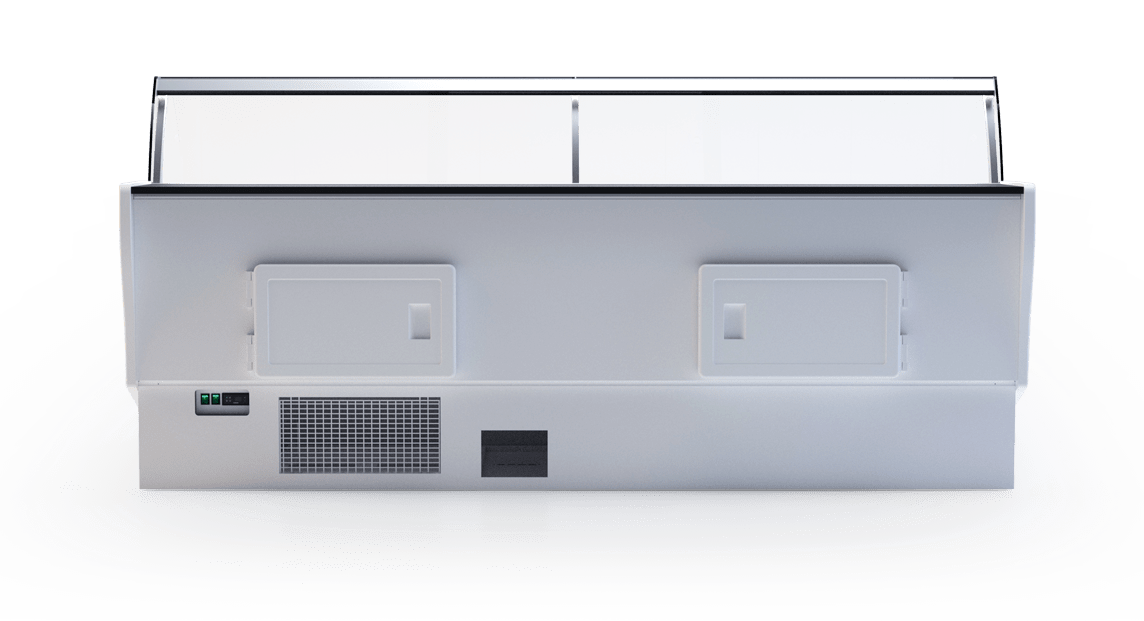

internal cooling aggregate
insulated plastic sides + glass sides – selectable colour (IGLOO colour chart)
static cooling
body with service – side base flashing composed of white, coated sheet metal
front base sheets and front panel with color-coated sheet – selectable color (IGLOO color guide)
ecological polyurethane foam insulation
exposition area made of stinless steel
storage chamber made of white coated steel
storage chamber back doors – hinged (not applicable to corners)
worktop – stainless steel
anodised aluminum profiles color gold or silver (IGLOO pattern book)
curved front glass openable
LED lamp (color of choice: white, confectionery or meaty “deep pink”)
bumper – different colors available (IGLOO pattern book)
insulated plastic side walls + glass side panels – different colors available (IGLOO pattern book)
automatic defrost
codenser outlet to container
analog thermometer
electronic temperature controller with digital display (IGLOO)
condenser impurity or fan operation failure alarm

Options

device prepared for multiplexing
device without side panels prepared for multiplexing (MOD/A)
housing with base panel from staff side made of stainless steel
front panel color different than IGLOO pattern book (please contact IGLOO sales dept.)
front panel color – different colors available (IGLOO pattern book)
custom front panel color (after consultation with the IGLOO Sales Department)
base panel made of stainless steel
display space with coloured sheet – selectable colour (IGLOO colour chart)
storage chamber made of stainless steel
exposition area made of acid resistant stinless steel
storage chamber made of acid – resistant stainless steel
exposition area – stepped – 2 steps
exposition area – stepped – 3 steps
powder painted evaporator
night blinds made of plexi glass
worktop – granite grey (thickness – 20 mm)
worktop – granite Balmoral (thickness : 20 mm)
worktop – granite black (thickness : 20 mm)
additional exposition glass shelf
delivery overlay for the stainless steel panel front window
set of wheels (castors)
fans enforcing air circulation
additional LED light in top lamp profile
automatic defrost
the device with the temperature range from -2°C do +4°C (includes electric defroster heaters)
automatic condenser vaporization
electronic temperature recorder + software
